Installing Mains Voltage Shading Systems in Scotland
If you’re looking to install mains voltage shading systems, such as motorised window blinds, in Scotland, it’s crucial to follow the UK Wiring Regulations (BS 7671) to ensure safety and compliance. This guide will walk you through the essential steps and considerations specific to installations in Scotland.
Assess Circuit Load Capacity
Before taking a spur from a lighting circuit, check that the circuit has enough capacity to handle the additional load from the shading system. Lighting circuits are typically rated at six amps. Too much load can cause the circuit to overload, trip, or become a fire hazard. Calculate the total load of all devices on the circuit, including the shading system, to ensure it does not exceed the circuit’s capacity.
Install a Fused Switched Spur

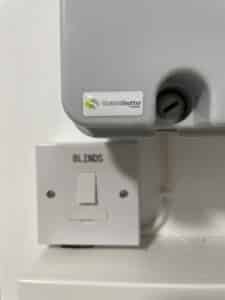

Use a fused switched spur to safely connect the mains voltage shading system to the lighting circuit. A fused switched spur provides a means of isolation and protection for the system, ensuring it can be turned off and on separately from the primary lighting circuit. The steps are as follows:
Choose an appropriate location: Install the fused switched spur in a convenient and accessible location within the premises.
Fuse Rating: Ensure the fused switched spur contains a 5-amp fuse appropriate for the load of typical motorised shading systems. This fuse will protect the system and wiring from overcurrent, reducing the risk of damage or fire.
Wiring the Spur to the Lighting Circuit
Wiring the Spur to the Lighting CircuitUse Correct Cable Size: Select the correct size cable to connect the spur to the lighting circuit. Typically, 1.0 mm² or 1.5 mm² twin and earth cable is used for lighting circuits. Ensure the cable size is appropriate for the load and distance to avoid voltage drops and overheating.
Make Safe Connections: Turn off the power at the consumer unit before making any connections. Connect the spur to the existing lighting circuit using junction boxes or connectors that comply with current regulations.
Connect the Mains Voltage Shading System
Once the fused switched spur is installed and connected to the lighting circuit by a qualified electrician, Scottish Shutters will handle the connection of the shading system:
Run the 240V Motor Cable
Run the 240V motor cable from the shading system to the fused switched spur. Ensure the cable is appropriately rated for the system’s power requirements.
Terminate the Cable: Scottish Shutters will securely terminate the motor cable at the fused switched spur, following the manufacturer’s instructions and ensuring all connections are tight and insulated. This step ensures seamless integration and operation.
Switching and Control

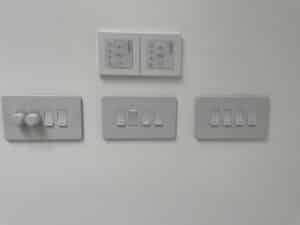

Wireless Control: The mains voltage shading systems use wireless control, so no additional wiring is required for the control switches. Scottish Shutters will programme the intelligent motors to work with the wireless control switches, ensuring easy and convenient operation of the shading system.
RCD Protection
Check for RCD: Ensure that the lighting circuit is protected by an RCD (Residual Current Device). If not, consider installing one, especially if the circuit runs through moisture-prone areas, such as near windows. An RCD provides additional protection against electric shock, which is particularly important due to the variable weather conditions in Scotland.
Final Checks and Testing
Inspect and Test: Once installation is complete, inspect all connections and components. Test the circuit to ensure the shading system operates correctly, the fuse rating is appropriate, and the spur functions as intended.
Compliance: Ensure all work complies with the latest version of BS 7671. It is recommended that the installation be checked by a qualified electrician familiar with the specific requirements and standards applicable in Scotland.
Important Caveat
This guide provides general information on installing mains-voltage shading systems in Scotland. However, electrical installations can vary greatly, and specific conditions or local regulations may apply. Always consult a competent electrician to assess your situation and ensure that all work is carried out safely and in compliance with current regulations. A qualified electrician can provide advice tailored to your setup and confirm that all safety standards are met.
